Pintle Chain
Rexton® Pintle Chains are built for the toughest conveying challenges. Their self-cleaning design makes them ideal for slow to medium-speed conveying in heavy-duty environments with debris and contamination.
Designed with an open barrel construction, these chains allow debris such as sand, grain husks, or fibers to fall out instead of building up and jamming the chain.
Key Advantages
- Rugged & durable: Built to handle impact and abrasive media with confidence.
- Low maintenance: Open design simplifies cleaning and lubrication.
- Versatile: Performs in both agricultural and industrial applications.
- Problem material friendly: Excels in handling materials prone to packing or corrosion.
Construction & Materials
- Cast or forged steel links for high tensile strength and long service life.
- Heat-treated carbon steel pintles (pins) for superior wear resistance.
Typical Applications
- Agricultural machinery: Grain elevators, feed conveyors
- Sugar mills: Cane receiving
- Foundries & heavy material handling systems
- Bulk and scrap conveying, chip handling, and similar tough duties
Options & Attachments

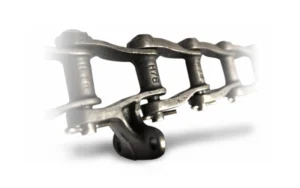

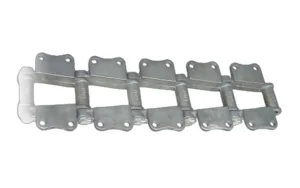

Available with a range of standard chain attachments such as AS2, K2, and flight bars to suit specific conveyor requirements.
